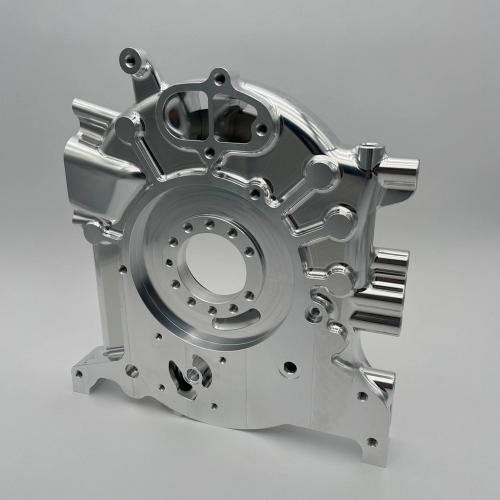

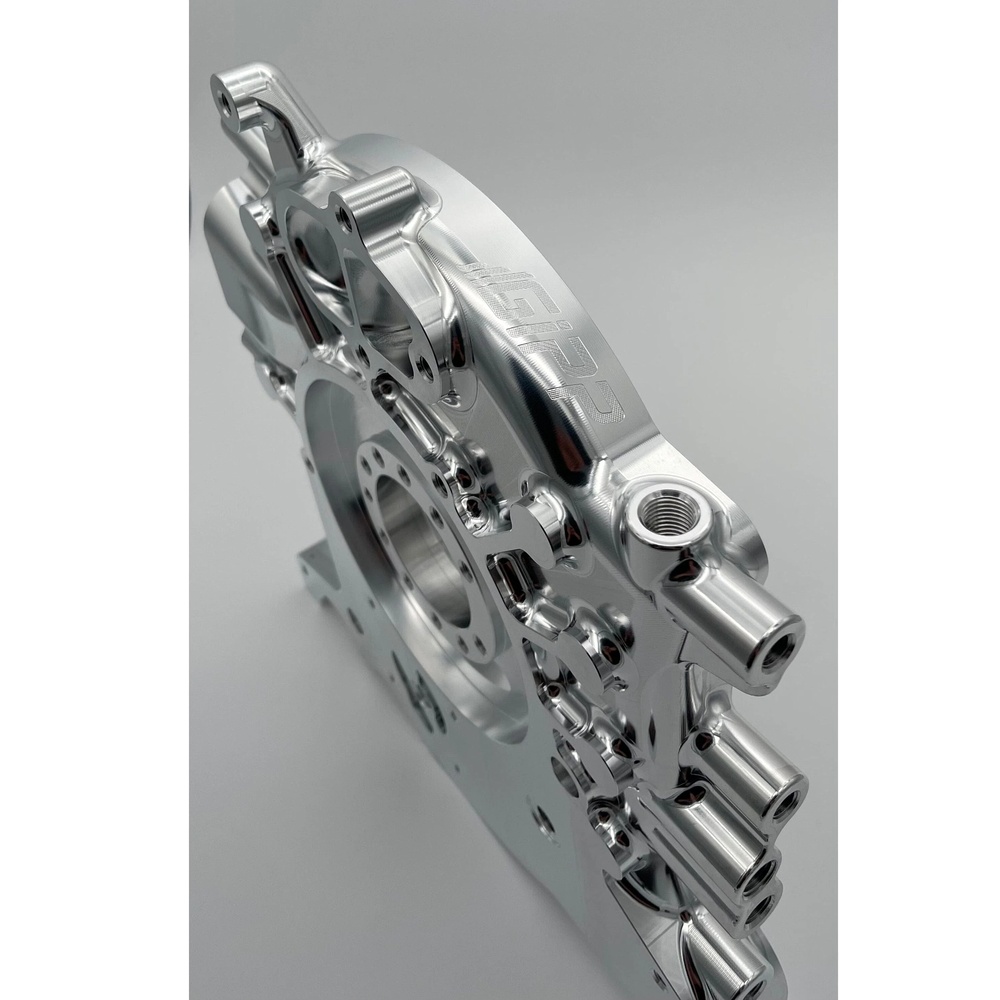

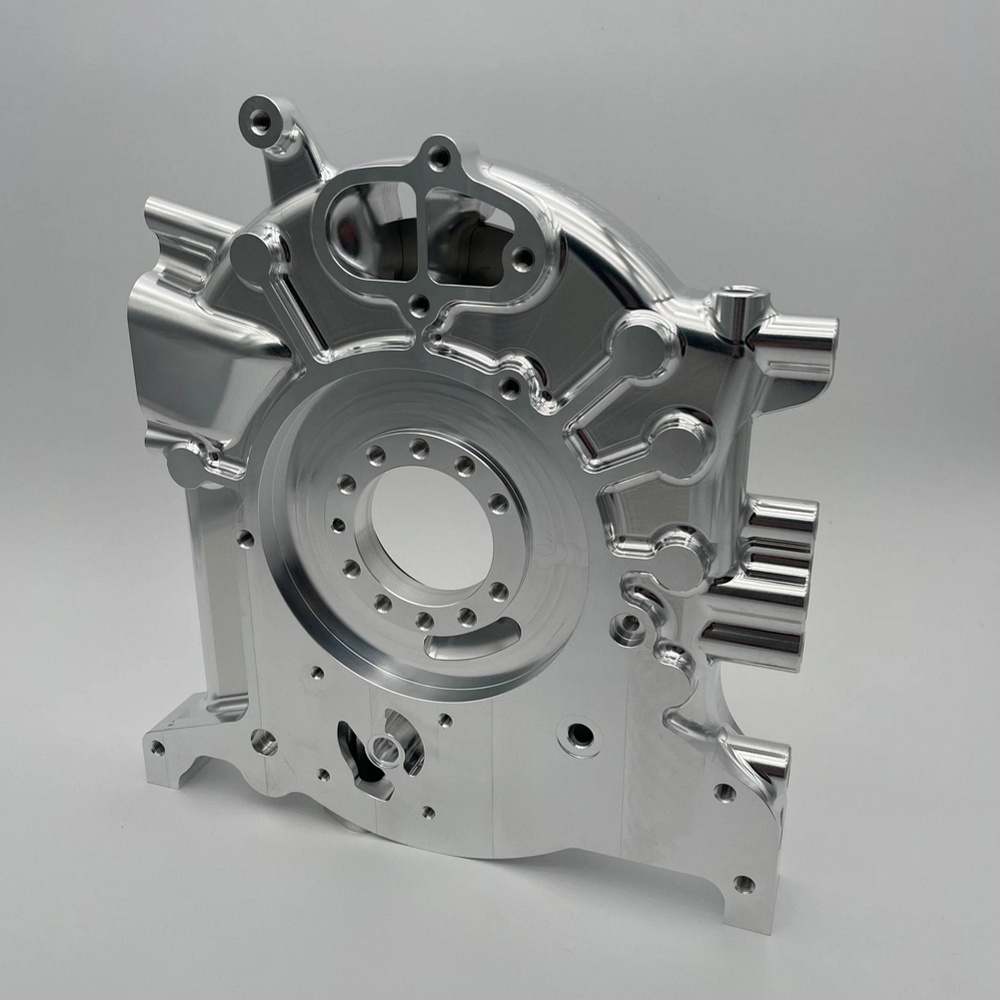

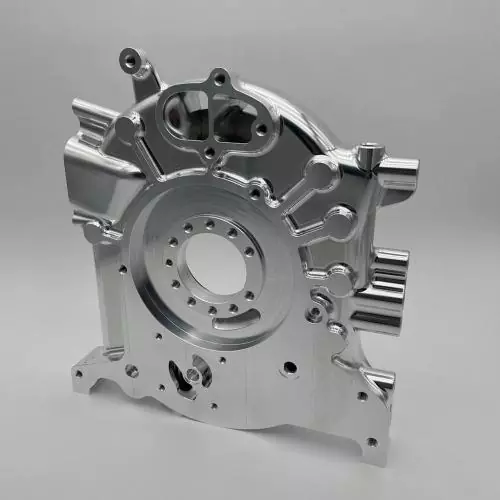

Unlock the full potential of your rotary engine with a GIPP Rotary Billet Plate. Crafted from 7075 billet aluminium that is renowned for its aerospace pedigree, our billet plates embodies decades of racing experience in a combination of both race and street applications. It is a out of the box replacement with the OEM Mazda factory plates.
Suitable for 13B, 20B, 26B, 5 and 6 rotor race or street applications.

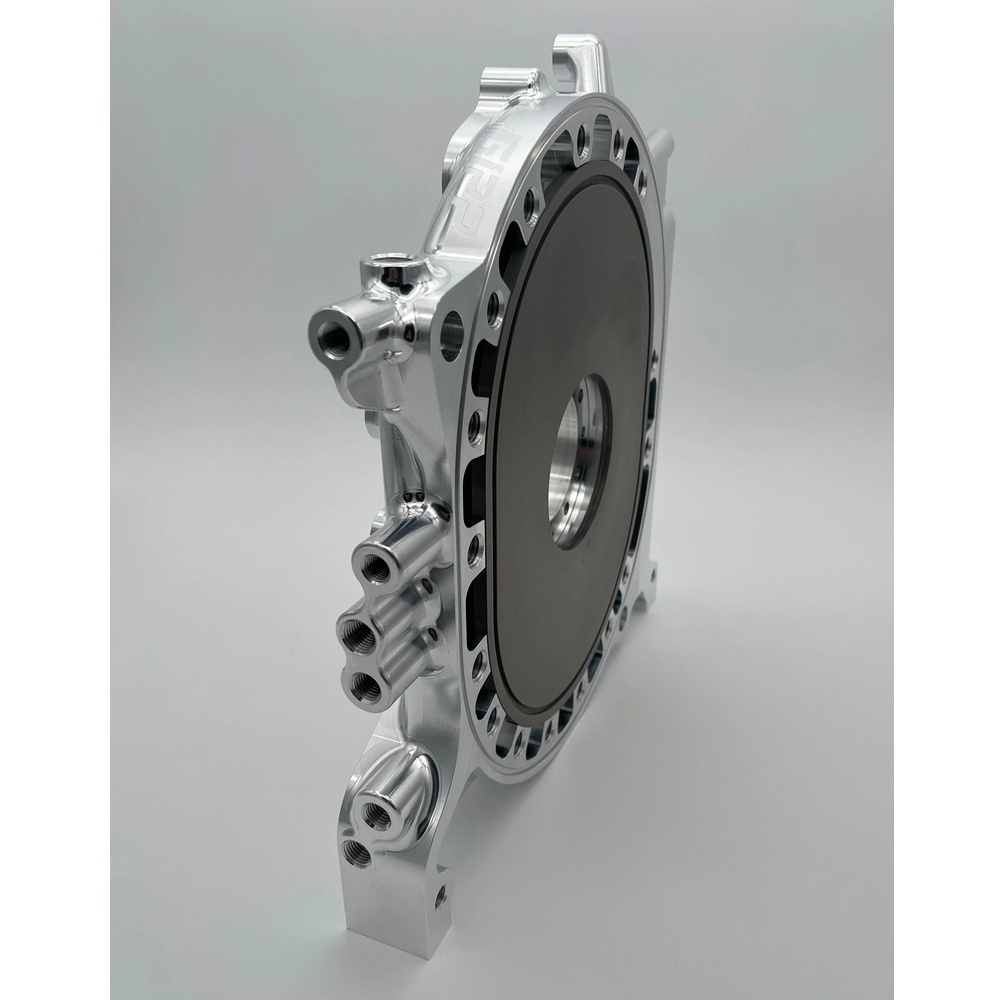

Manufactured with cutting-edge processes in Australia, each plate undergoes meticulous machining to micron-level precision. The interchangeable wear surface is a quick and simple replacement with the tool from GIPP. Engineered to withstand extreme horsepower, the interchangeable cast iron wear plates have been developed to be securely mounted, minimising any chance of flexing under high boost while maintaining compression efficiency.
Extensively researched and developed, our flow optimising processes for both the cooling and intake ports elevate airflow and cooling dynamics over standard Mazda cast plates. Every plate has also been meticulously machined to eliminate excess weight while maintaining its fundamental core toughness resulting in an unrivalled strength to weight ratio.
These plates require no additional porting as all GIPP Billet plates are 100% CNC ported in our 5 axis CNC machines to a degree that is impossible with standard cast iron plates from Mazda. Additional porting options are available upon request.
Features
- Fully CNC machined and manufactured in Australia
- Machined from high quality certified ISO 9001:2015 Aerospace grade billet aluminium
- Out of the box replacement with OEM Mazda plate
- Proprietary fully interchangeable wear surface and backing supports
- High quality manufacturing, machined to the lowest possible tolerance
- Engineered for maximum weight reduction while retaining strength and rigidity
- Fully CNC ported Cosmo intakes (Compatible with Cosmo intake, modifications required to maximize performance with FC and FD intakes)
- Flow optimised water cooling paths and intakes to perform better than OEM flow rates
Stud kit from GIPP required. Product Safety Information
