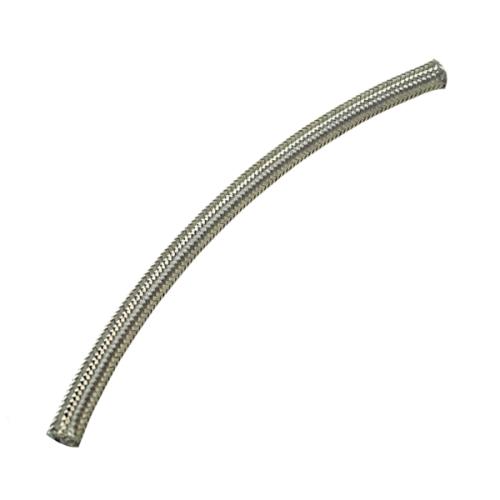

WS Dash 04 Stainless Steel Hose
For connections with thread size: -04 AN / Dash 4/7 / 16x20 "
Internal diameter: 5.56 mm
Outer diameter: 11.13 mm
Max. Working pressure: 69 bar
Space pressure: 414 bar
Max. Vacuum pressure: 0.85 bar
Weight: 0.178 kg / m
Min. Radius: 50.8 mm
Temperature range: -40 ° C - 150 ° C
Suitable for: fuel, oil and air
Construction: With stainless steel mesh and stainless steel sheath on the outside.
Color: silver (stainless steel)
Price is per 1m.
