Description
AEM 30-2010 Air Temp Sensor Kit 3/8"NPT

AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.

  • Accuracy: < 1.5°C / 2.7°F
  • Operating: -40°C to 135°C / -40°F to 275°F
  • Resistive Range (Ω): See Table
  • Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
  • Sensor Body Material: Brass
  • Thread: 3/8" NPT
  • Hex Size: 3/4"
  • Installation Torque: 20Nm / 15 ft-lbs
  • Weight: 33.3g
  • Electrical Termination: Weatherproof connector. Includes Mating Connector, Pins & Wire Seals

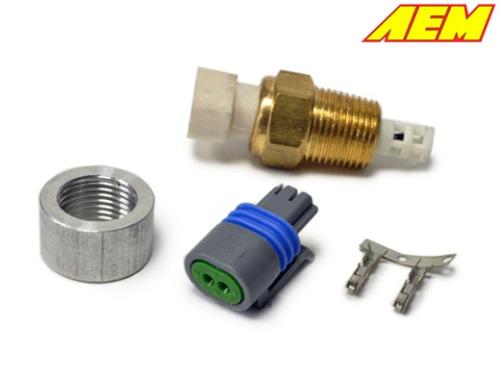

  • Includes: Air Temp Sensor, 3/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
Especially recommended for RX8 Turbo conversions to measure the actual charged air temperature before the throttle for the ECU.
For this the OEM MAF IAT sensor cable have to be disconnected and then connect it to the AEM sensor.
The values in the ECU IAT map have to be remapped for the AEM sensor values.
