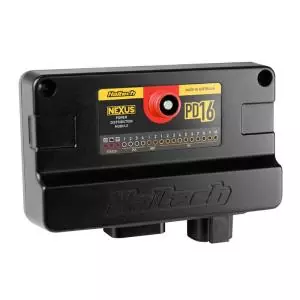

The NEXUS PD16 is Haltech's new power distribution product. Boasting new, innovative
yet user-friendly technology, it sets a new market standard for power distribution systems.
Designed to integrate seemlessly into your existing Haltech Elite
or Nexus engine management system, the PD16 ensures safe,
dependable power delivery to your vehicle.
10 x High Side Outputs
2 x Half Bridge Outputs
4 x 25A High Current Outputs
8 x Inputs + Dedicated Ignition Switch Input
Power for Ignition Switch
Integrated into Haltech CAN Bus Network
5V Sensor Supply / Sensor Ground
120A SurLok Connector
Suits: Compatible with Haltech Elite and Nexus ECUs ONLY Does not function as a stand-alone PDM.
Includes: 1 x Haltech PD16, 1 x SurLok 120A Connector Red, 1 x USB-C Cable, 1 x USB-C Dust Cap, 1 x Haltech Fabric Keytag, 1 x Quick Start Guide Booklet, Mounting Hardware - (2 x M5 Bolts and Nuts)
Notes: The NEXUS PD16 is Haltech's new power distribution product. Boasting new, innovative yet user-friendly technology, it sets a new market standard for power distribution systems. Designed to integrate seemlessly into your existing Haltech Elite or Nexus engine management system, the PD16 delivers safe, dependable power delivery to your vehicle.
